CORE

Price range: 7.300,00 € through 23.050,00 €

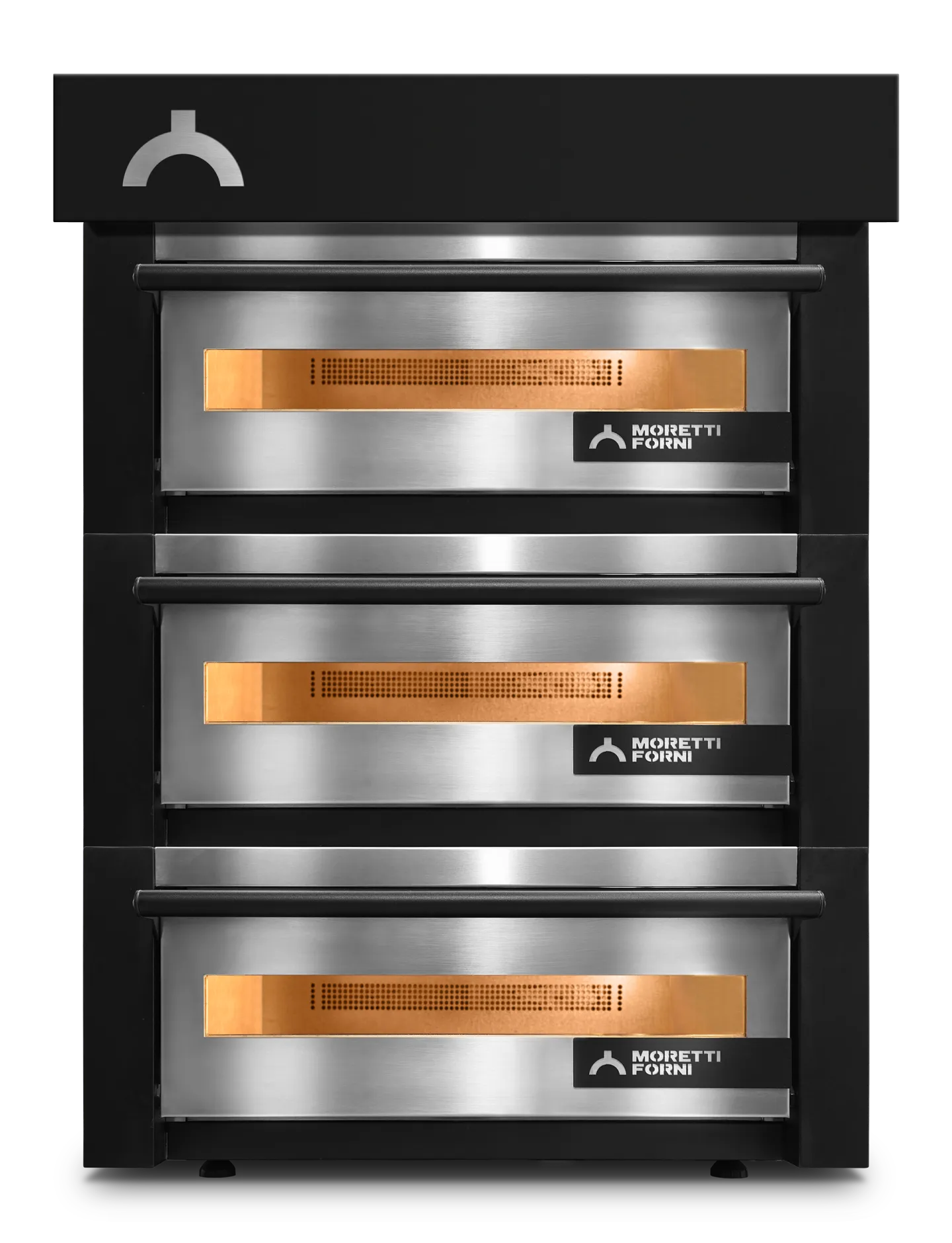

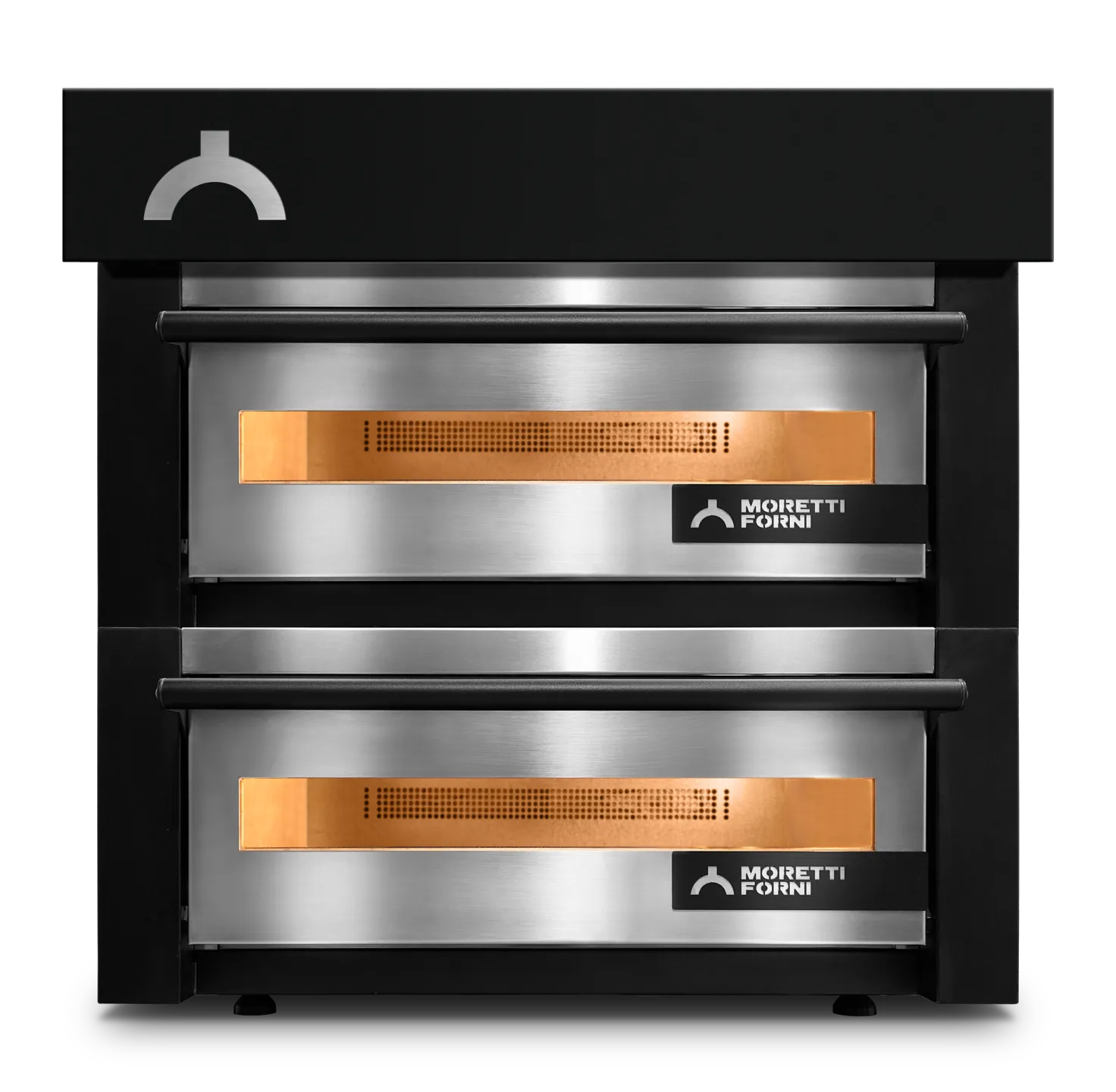

Refining® oven Core consists of a deck specifically designed for Refining®, using Condecktion® technology, which is the combination of static heating elements and controlled ventilation. This grants a direct heat distribution over the entire surface of the deck, for direct baking or baking with trays. The oven control is located on a removable tablet that can manage several interconnected modules. Electronic temperature management. Bottom-hinged door with tempered crystal glass for a perfect view of the product being heated. Core is stackable and also available with hood on request. Maximum chamber temperature: 290°C.
SKU N/A Category Brand:

FUNCTIONING

  • Heating by high-performing armoured heating elements combined with Condecktion® counter-rotating fans
  • Separate power management of ceiling and floor Dual-Power® Technology
  • Ventilation management and control
  • Preset Refining® cycles
  • SmartDeck™ with continuous self-adjustment of heating element power according to the presence and type of product being baked
  • UI with intuitive sliders that makes customisation of the baking result easy. Mapping is optimised for every product
  • PID power control allows automatic adjustment of the energy required according to the quantity of product being baked AdaptivePower® Technology
  • Self-limited temperature of 290°C (550°F)
  • Continuous temperature measurement via thermocouple
  • PowerCleaning™ function

CONSTRUCTION

  • Structure made in folded stainless steel
  • Side panes in pre-painted metal sheet
  • Bottom-hinged stainless steel door
  • Tempered crystal glass
  • Painted stainless steel handle
  • Removable oven control tablet
  • Refractory brick baking surface
  • Side and top internal structure made of aluminised steel
  • Internal rear-view mirrors made of reflecting steel suitable for high temperatures
  • Heat insulation CoolAround® Technology

STANDARD EQUIPMENT

  • Multilanguage, antiglare, colour tablet TFT Touch 10.1” IPS
  • Customisable Refining® cycles
  • Auto EcoStandby™ for work pauses
  • Auto PowerBooster™ for work peaks
  • Customisable Hotkey
  • ReadyToGo Timer, optimised switch on based on baking time set. Up to two daily programmable start and stop.
  • Self-diagnosis with error message on the tablet
  • Baking Timer
  • Maximum temperature independent safety device
  • USP port and WiFi module for software update
  • SmartBaking app

ACCESSORIES

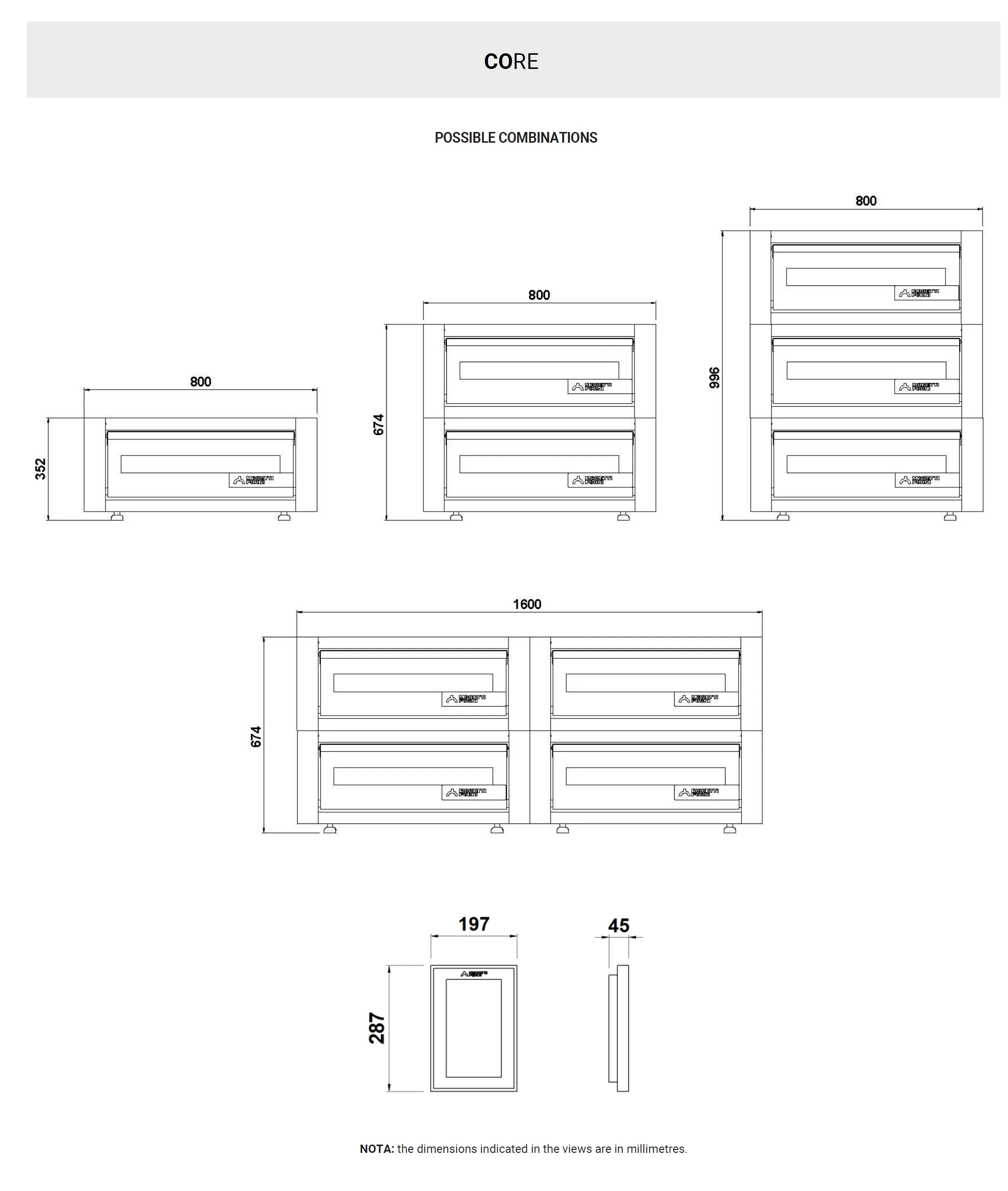

  • Multi-modular composition with interconnection with one tablet
  • Ducted hood

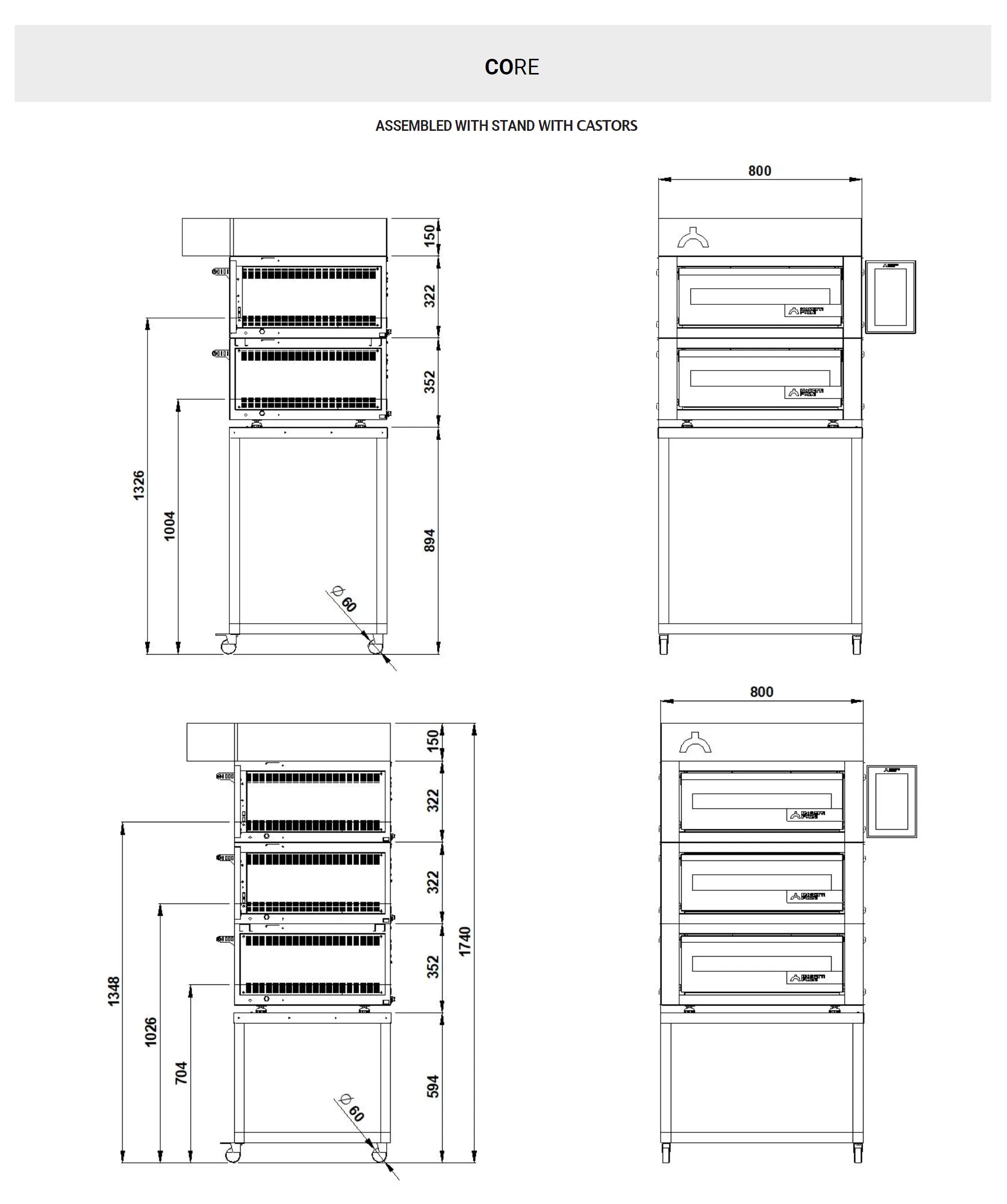

  • Stand with castors
  • Remote-Master® Technology

Smart Deck™

The adaptive deck is equipped with special sensors in each zone, self-regulating the heat more than 100 times per second according to the quantity and type of product being baked.
Perfect baking without operator intervention.
